LAMBDA FACILITIES

System 1

12G | UHD | HDR

Ross Ultrix Carbonite

Configurable up to 4 UHD MEs*

22 Mixer Sources

TouchDrive TD2S Panel

Ross Ultrix Router

64x64 Video Routing

12G Fiber I/O

Audio I/O Routing & Embedding

Up to 5 Multiviewers

Riedel 1024 Frame

Cerebrum Control System

Logos of brands: Ross, Riedel, Cerebrum, DirectOut Technologies, Telestream, OpenGear.

DETAILED SPECIFICATION

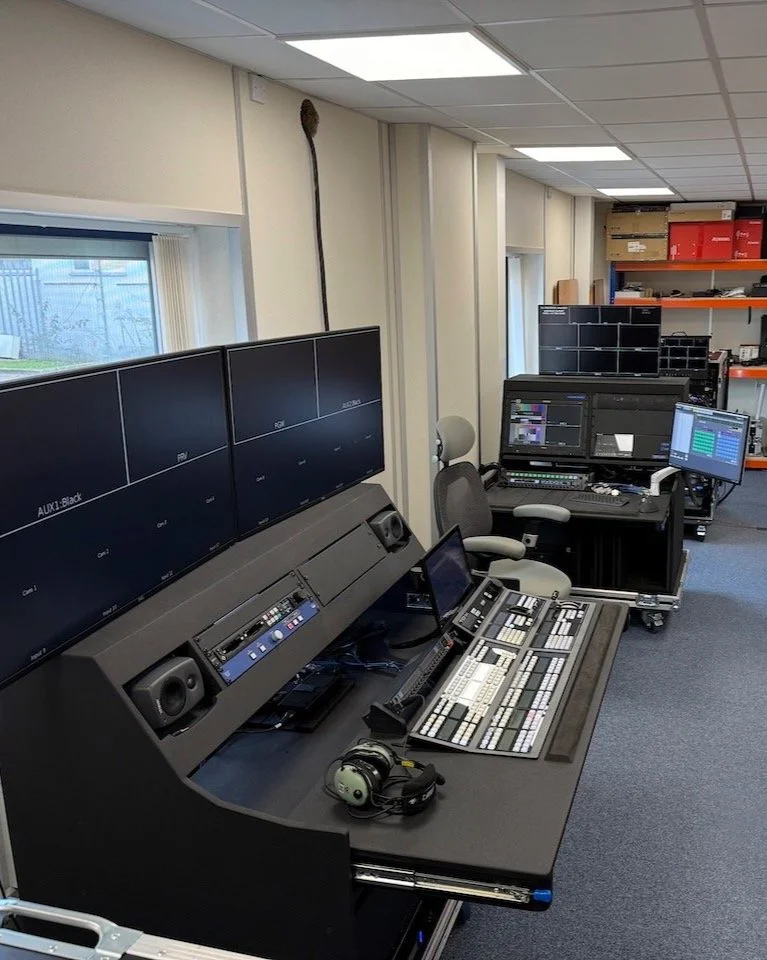

Production Desk

  • Ross Touchdrive TD2S

  • Touchscreen side panel

  • 2x 42” Multiview Monitors

  • Riedel Smartpanel

  • Genelec Stereo Monitors with volume control

  • Hyperdeck UHD ProRes/H265 Recorder

  • Netgear 4250-PoE Switch

  • UPS

Core Rack

  • Ross Ultrix Router

  • Carbonite SDPE

  • SFP I/O Board

  • EVS Cerebrum Server

  • Riedel 1024 Frame

  • DirectOut Andiamo

  • MADI/Analog/AES67 Routing

  • Telestream SPG9000

  • Netgear 4300-series Switch

  • 2x BMD Teranex UDX

  • EyePower Network Managed PDUs

  • 3KVA UPS

Engineering Desk

  • Ergonomic Capacity for 8x RCPs

  • TVLogic 12G HDR Calibrated Reference Monitor

  • Telestream PRISM Scope

  • Router Panel + Touchdowns

  • Riedel Smart Panel

  • 32” Multiview Monitor

  • Netgear 4300-PoE Switch

  • UPS

CCU Rack

  • Capacity for 6 - 8 CCUs

  • Custom, in-house designed comms/tally/pgm interface units

  • PIX Multiviewer

  • Pullout 17” Multiview Monitor

  • DirectOut Andiamo AES67 - Analog Interface

  • Netgear 4300-series Switch

  • 3KVA UPS

Broadcast Fly-pack
Screenshot 2025-03-12 at 11.26.52.png
Broadcast Fly-pack
Broadcast Fly-pack

I/O CAPACITY

Video

  • 64 x 64 Router

  • 32 BNC Inputs Available

  • 28 BNC Outputs Available

  • 8x Optical 1310nm SFP Sources

  • 8x Optical 1310nm SFP Destinations

  • 4:16 12G TX DA + Optical Outputs

  • 2x Vision Mixer MVs

  • Upto 5 Ultrix MVs

Audio

  • 16+ Analog Inputs

  • 16+ Analog Outputs

  • 64ch MADI Routing

  • Ultrix MADI I/O

  • AES67 Between Andiamo and Riedel Artist

  • Almost unlimited SDI Embedding & De-Embedding

Tallies & Control

  • Configurable Red and Green tally system

  • Hardwired CCU breakouts via Cerebrum network GPIO

  • Direct tallies from vision mixer available on core rack patch panel

  • TSL Network Tallies available in Cerebrum

  • Full routed tally and UMD support in all multi viewers

Comms & Networking

  • Production and Engineering 4-Wires to all CCUs

  • AES67 Network with Andiamo AES/Analog conversion for 4-Wires

  • Managed media network configured with VLANS and SFP Switches

  • Miktorik Router for WAN access and VLAN routing

Extended availability of Bolero and additional Riedel equipment through our partner

Visual Certainty

Riedel Bolero wireless intercom system with beltpack and antenna
